Apartment Video Door Phone Intercom System Video Doorbell Kit Support 2 Monitor 1 Outdoor Call Panel Option Support Door Release
SKU
Apartment Video Door Phone Intercom System Video Doorbell Kit Support 2 Monitor 1 Outdoor Call Panel Option Support Door Release
>>>introduction:
1

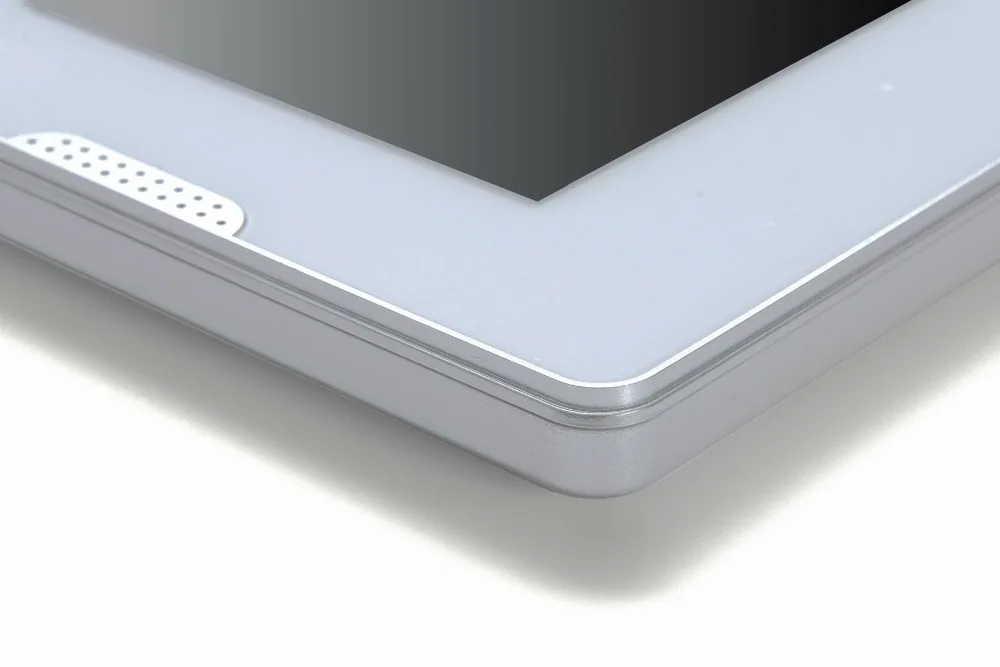

. Ultra-thin design luxurious style indoor machine, leading the new trend of color video door phones.
2
. Waterproof, anti oxidation and wear resistance outdoor unit, equipped with rain-proof cover, support embedded installation and hanging garment two modes.
3
. With IR night vision function, IR distance is about 1-3 meter.
4
. No radiation, low power consumption, high definition 7 inches color images.
5

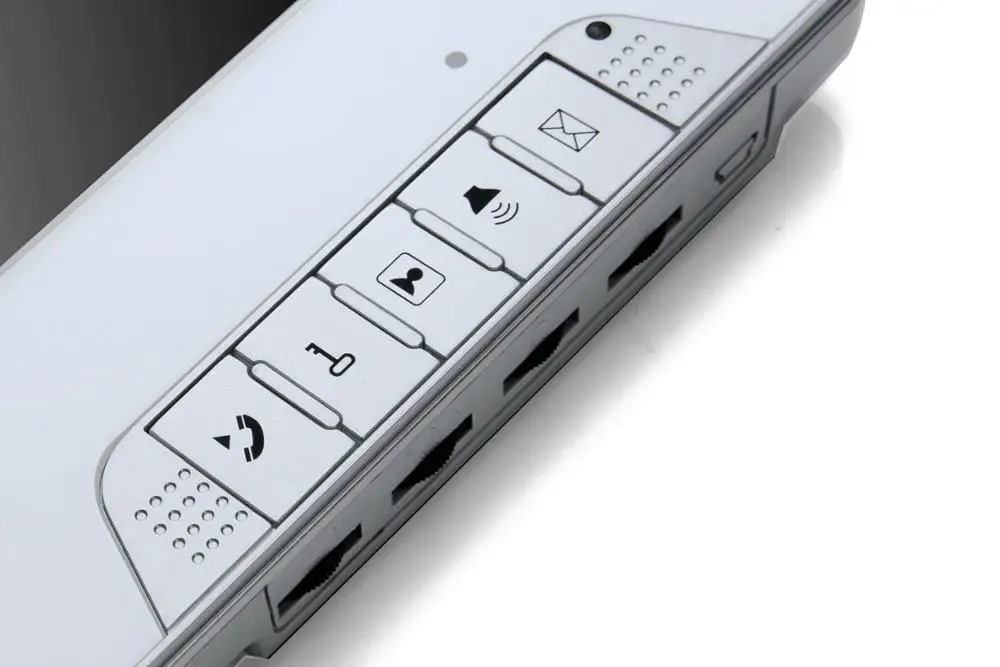

. Monitor, intercom, unlock,hands-free, chord rings choice.
6
. With unlock function(Please add an access control power for power off unlock)
7
. Volume, brightness & contrast adjustable.
8
. 4 cores wire connection between indoor monitor and outdoor camera
9
. Match can up to 1&1, 1&6, 2&1, 2&6 systems.
>>>Operation Instruction:
(1) Connect cable and electric lock according to the User Manual, check whether wiring is errorless and then proceed to next step.
(2) Turn on the indoor unit power, check whether the power indicator of the indoor unit works normally.
(3) Press the calling button, then the indoor monitor will hear the ringtones and show the image.
(4) Adjust brightness/ chroma/ volume/ optimum talkback location (ex-factory test).
(5) Press the talkback key and check whether indoor and outdoor talkback works normally.
(6) Indoor monitor under the standby mode, press the monitor button to check whether the monitoring key works normally.
(7) For more than 2 indoor monitors, press the intercom button of the first indoor monitor, every indoor monitor shows blue screen,the press the intercom button of second indoor monitor to talk.
(8) Under the intercom mode, press the unlock button to check whether unlock works normally.
(9) You can safely use the product upon passed acceptance mentioned above.
>>>Specification:

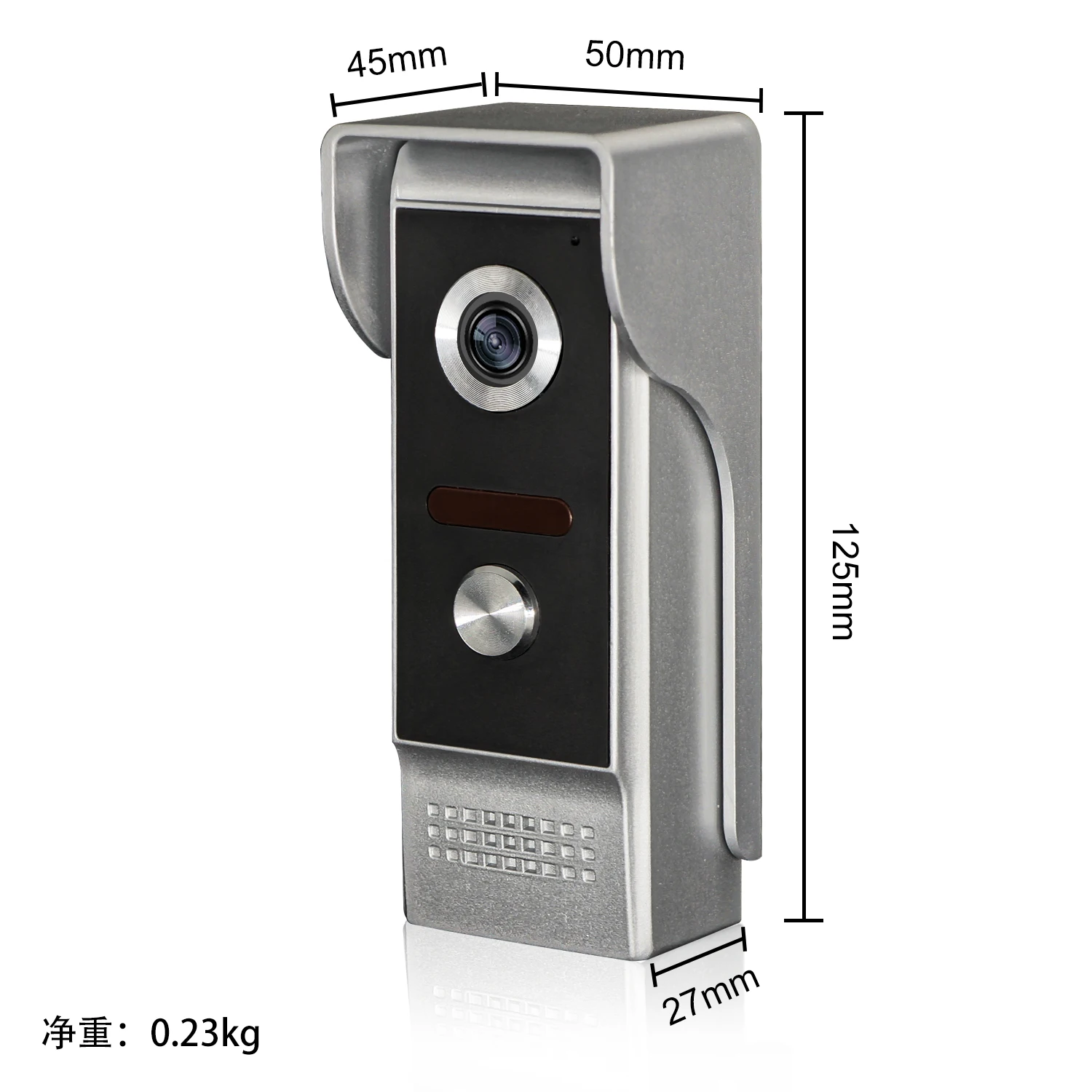

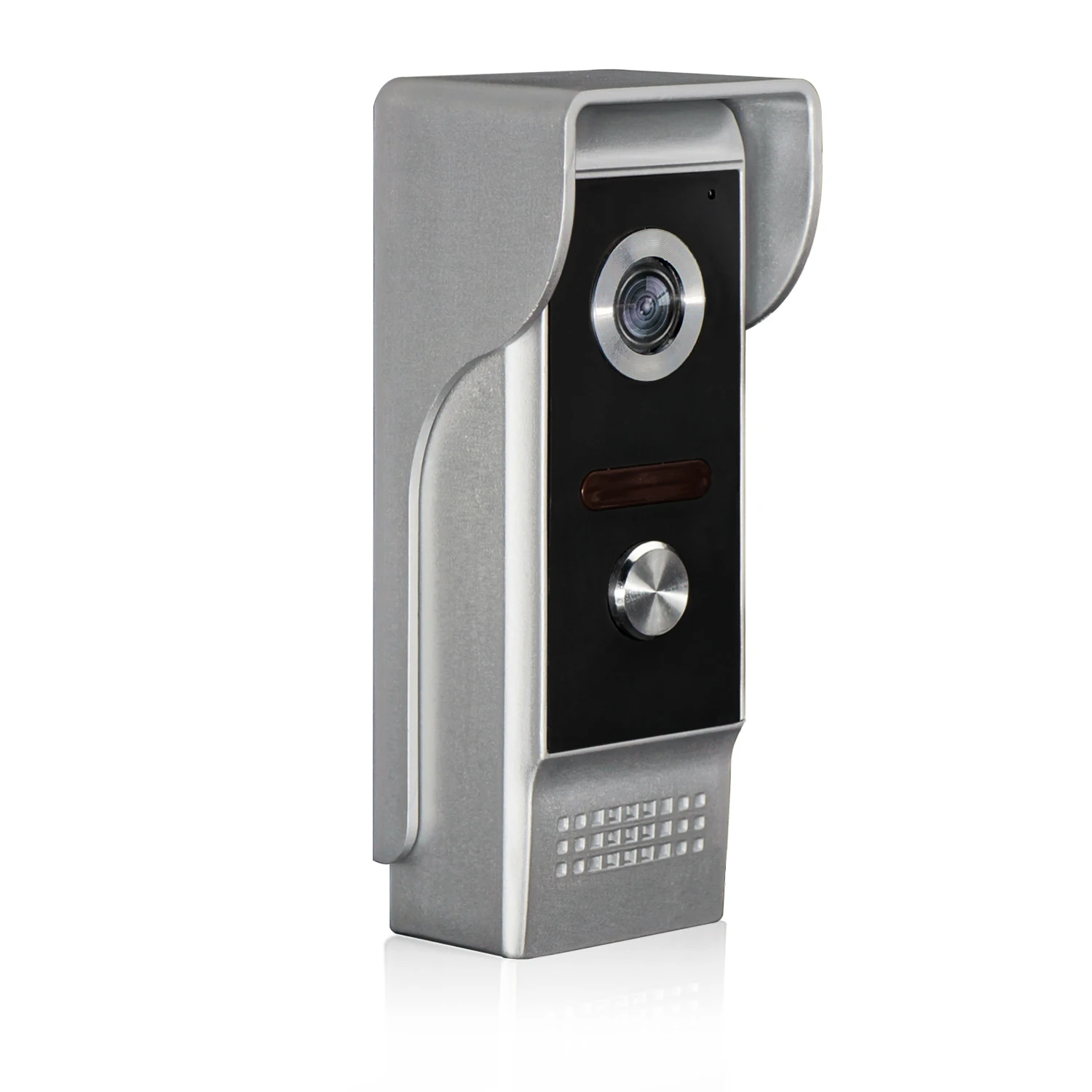

Outdoor Camera
Camera: 1/4" CMOS
Min. Illumination: 0.5Lux
Video output: 1Vp-p/75Ω
Adapter input: AC100~240V, 50/60Hz
Adapter output: DC15V/1.2A
Installation: Wall mounted
Material: ABS plastic & aluminum alloy
Wires for Lock-camera connection.

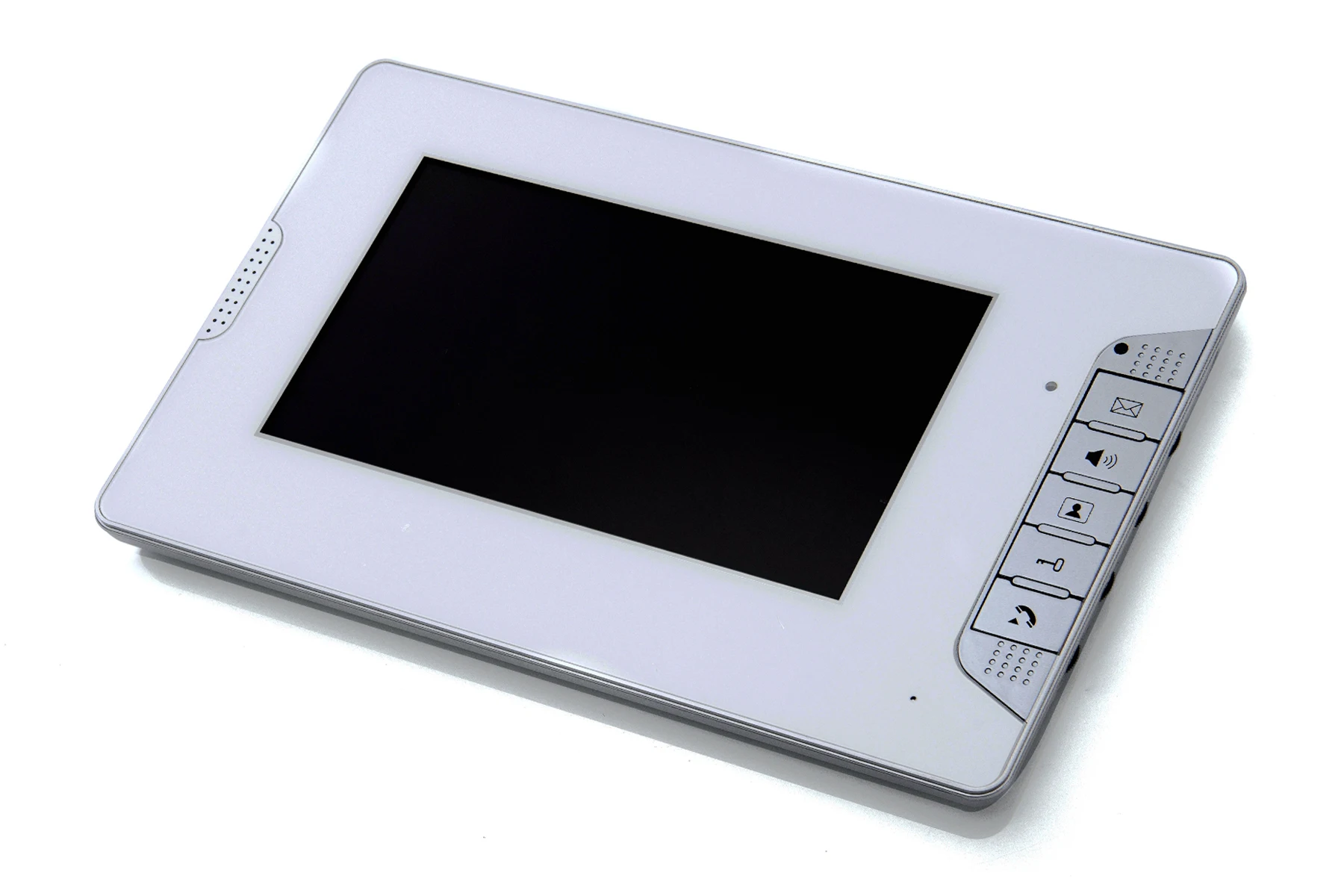

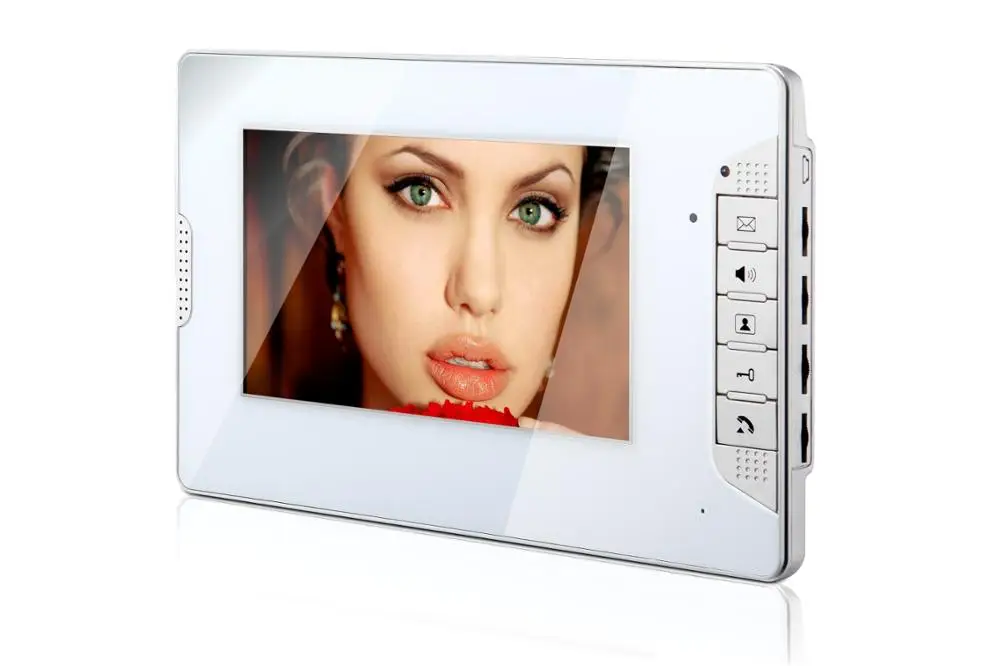

Monitor
Screen: 7" TFT/LCD
Material: ABS plastic & aluminum alloy
Power source: AC100V-240V / 50-60Hz
Resolution: 900*480
Conversation delay:120S±10S
Monitoring delay:60S±10S
Operating temperature:-25-60degree
Power consumption:Standby: 0.5W, in-service: 8W
Connection mode:Four-wire, 5-core wire is added to extension
>>>Package contents:

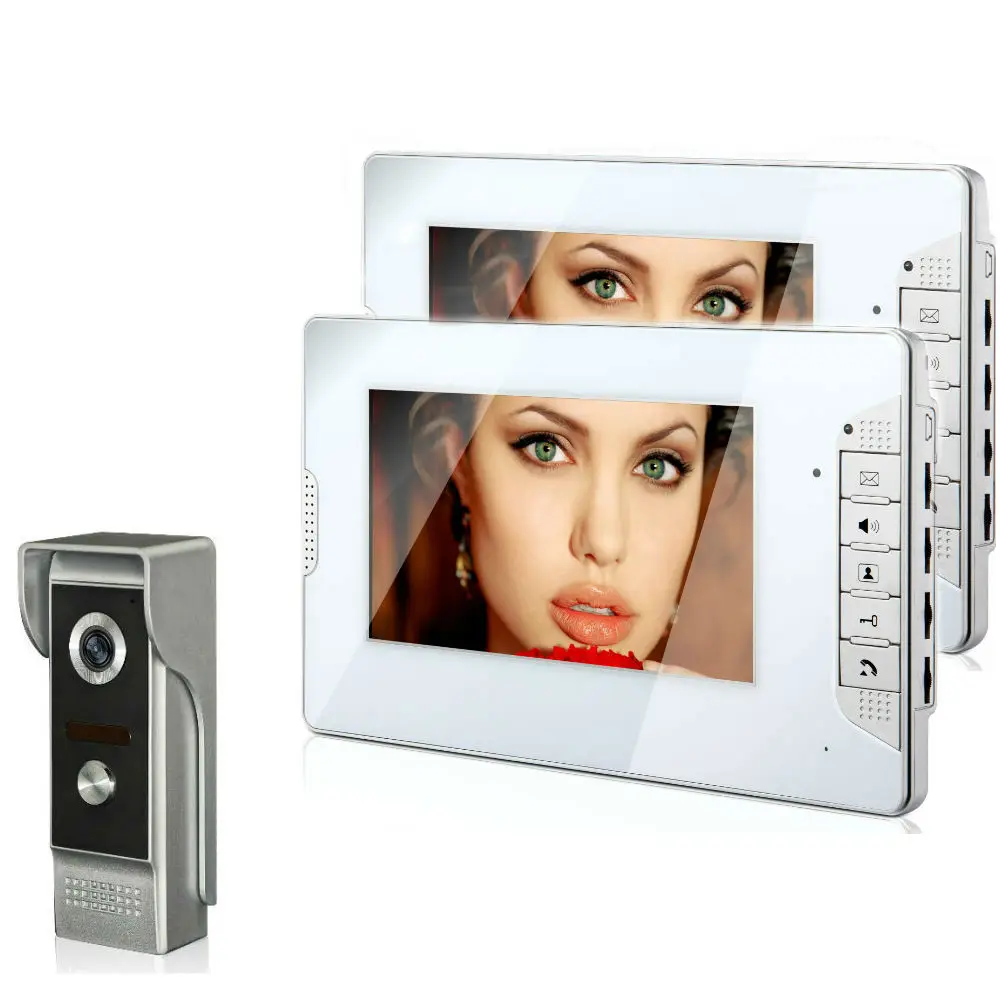

A KIT
1 * Outdoor Unit (Camera)
2 * Indoor Unit (Monitor)
2 * Adapter
1 * test Cable
B KIT
2 * Outdoor Unit (Camera)
1 * Indoor Unit (Monitor)
1 * Adapter
1 * test Cable
C KIT
1 * Outdoor Unit (Camera)
1 * Indoor Unit (Monitor)
1 * Adapter
1 * test Cable
